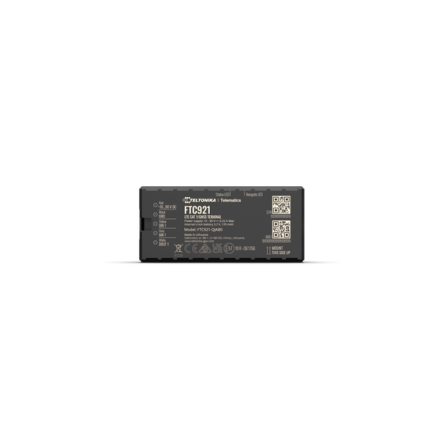

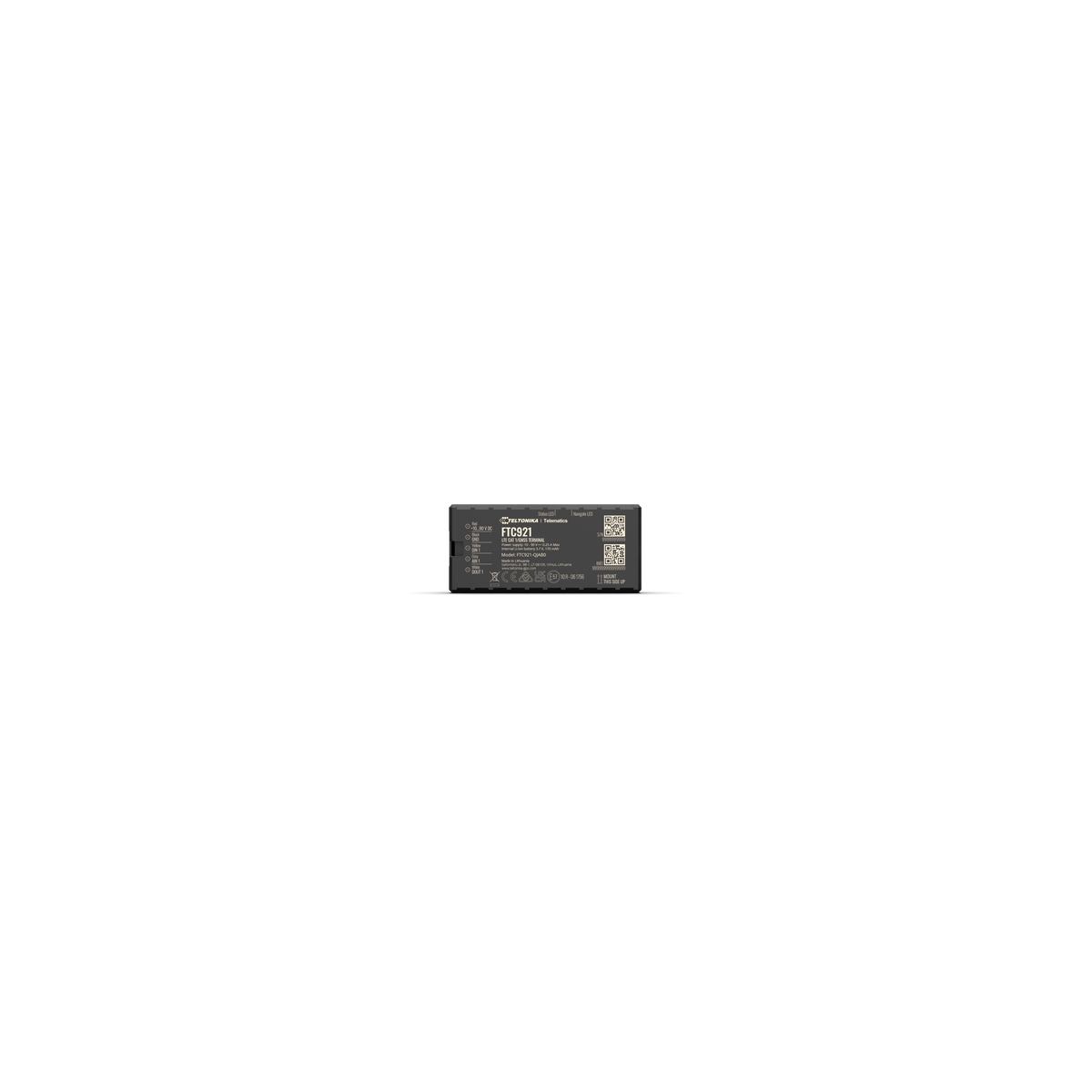

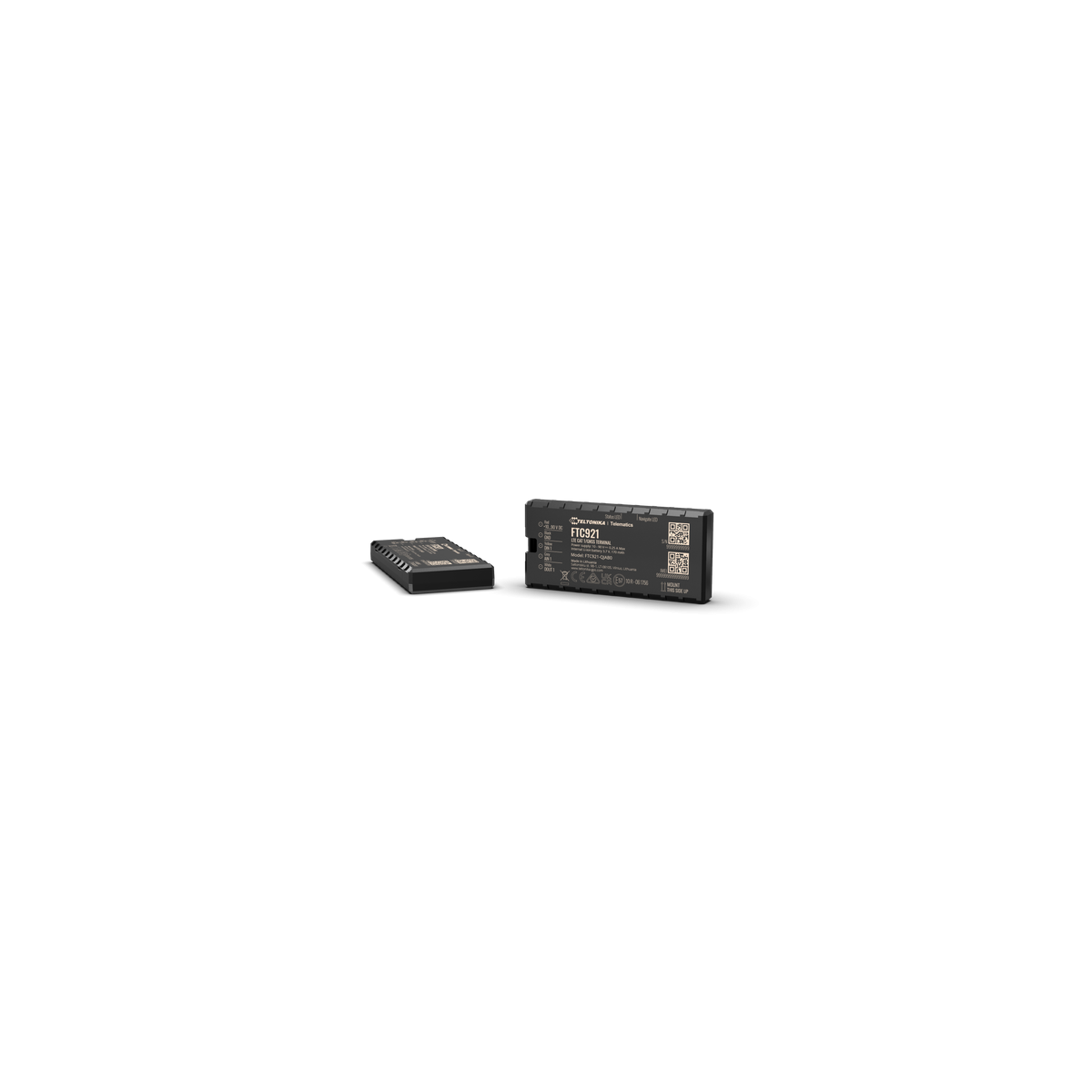

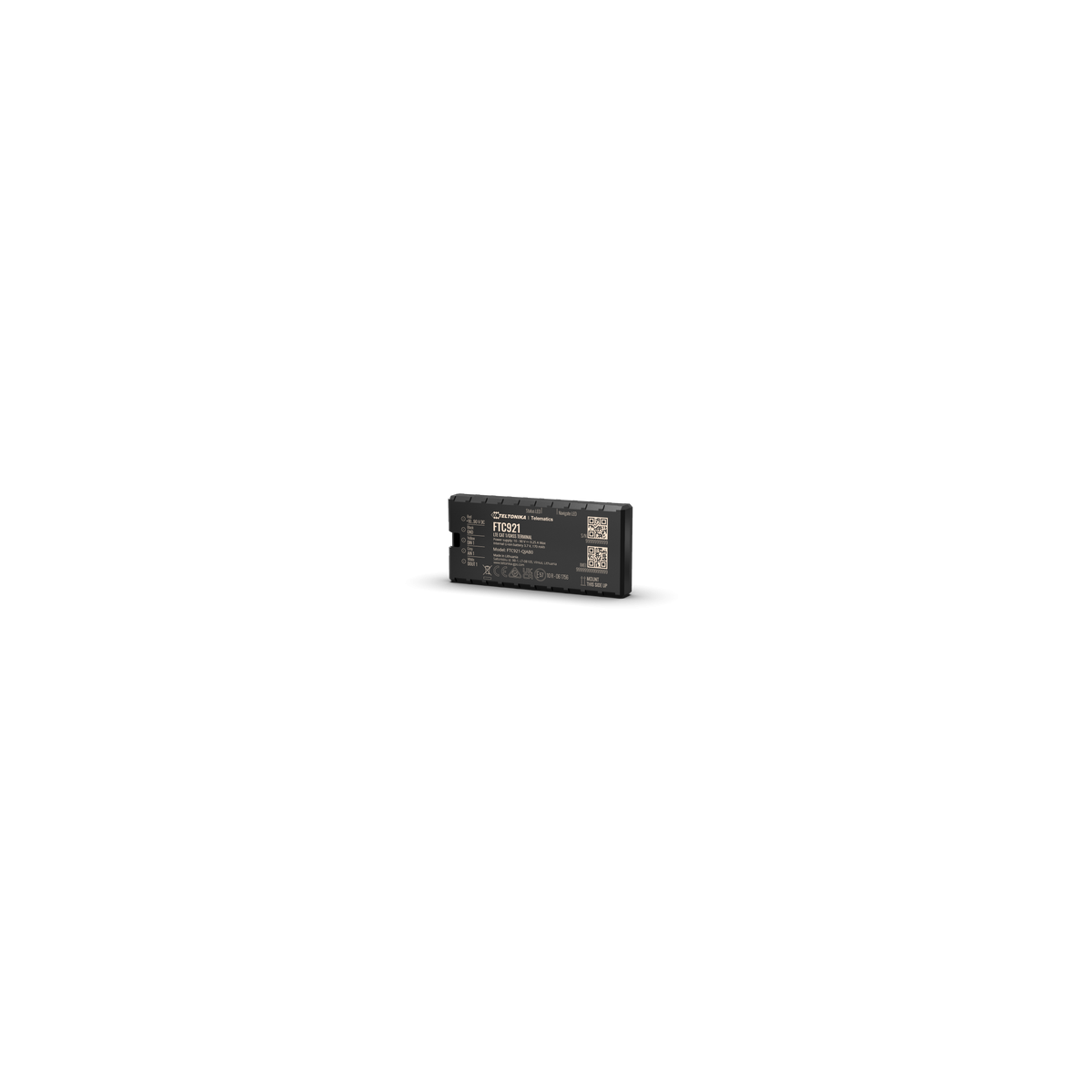

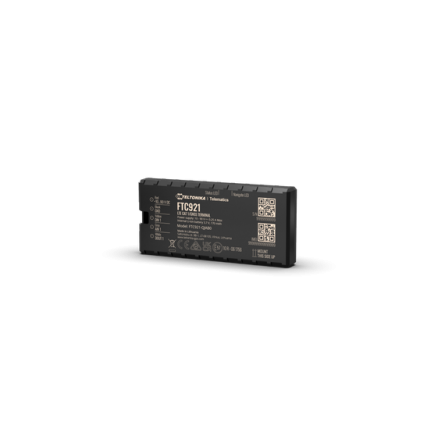

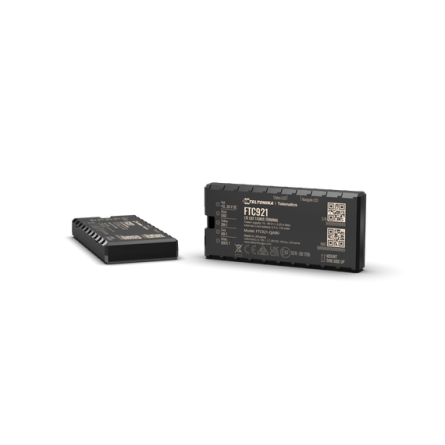

TELTONIKA FTC921 (4G)

TELTONIKA FTC921 price: it is a new generation 4G LTE Cat 1 GPS tracker, designed for high-voltage vehicles and demanding environments. This model is part of Teltonika's advanced FT (Fleet Telematics) platform, integrating hardware and software innovations for a high-level fleet tracking experience. The TELTONIKA FTC921 benefits from superior GNSS accuracy thanks to extensive satellite coverage (up to 41 visible satellites), providing exceptional location quality, even in difficult areas. Its high-voltage power supply allows for seamless integration into a wide range of electric vehicles: motorcycles, mopeds, rickshaws, utility vehicles, and industrial machinery. Thanks to its intelligent standby modes, the Teltonika FTC921 has the best value for money in the range.

Specifications

Module

Name FTC921-QJAB0

GNSS

GNSS GPS, GLONASS, GALILEO, BEIDOU

Reception Type

135 Tracking/Acquisition Channels

Tracking Sensitivity -165 dBM

Position Accuracy

< 1.8 m CEP

Velocity Accuracy < 0.1 m/s (with an error of +/- 15%)

Cellular

2G Bands

GSM: B2/B3/B5/B8

4G LTE Cat 1 Bands

LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28

Data Transfer

LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)

GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)

Transmission Power

Class 5 for GSM850/900: 30 ± 5 dBM

Class 3 for GSM1800/1900: 29 ± 5 dBM

Class 3 for LTE-FDD: 26 ± 5 dBM

Data Support: SMS (TEXT, PDU), Network Protocols (TCP)

Codec Support

Extended Codec 8

Power

Input Voltage Range: 10-90 V

Backup Battery: 170 mAh, 3.7 V (0.63 Wh) Li-ion Battery

Internal Fuse: 3 A, 125 V

Power Consumption: TBD

At 12 V < 25 mA (nominal, no-load)

At 12 V < 0.25 A max (with full load) load/peak)

Interface

Digital Outputs 1

Digital Inputs 1

Analog Inputs 1

Internal High-Gain GNSS Antenna

Internal High-Gain GSM Cellular Antenna

USB USB 2.0 USB Type-C

LED Indication 2 LED Status Indicators

SIM Nano-SIM

Memory 128 MB Internal Flash

Physical Specifications

Dimensions 93 x 43 x 12.5 mm (L x W x H)

Weight 65 g

Operating Environment

Operating Temperature (without battery) -40 °C to +85 °C

Storage Temperature (without battery) -40 °C to +85 °C

Operating Temperature (with battery) 0 °C to +40 °C

Storage Temperature (with battery) -20 °C to +60 °C

Operating Humidity 5% to 95% non-condensing

Ingress Protection Rating IP41

Battery charging temperature: -0°C to +45°C

Battery discharging temperature: -20°C to +60°C

Battery storage temperature: -10°C to +50°C for 1 month

-10°C to +35°C for 6 months

0°C to +30°C for 1 year

Features

Sensors: Accelerometer

Scenarios: Overspeed detection, jamming detection, disconnection detection, triggering

Configuration and firmware update: FOTA Web, Teltonika configurator (TCT)

SMS: Configuration, events, debugging

GPRS commands: Configuration, debugging

Time synchronization: GPS, NITZ, NTP

Ignition detection: Accelerometer, external power supply

Certification and approvals

Regulatory: FTC921-QJAB0: CE/RED, E-mark, RCM*, RoHS, REACH, Pulse 5b
