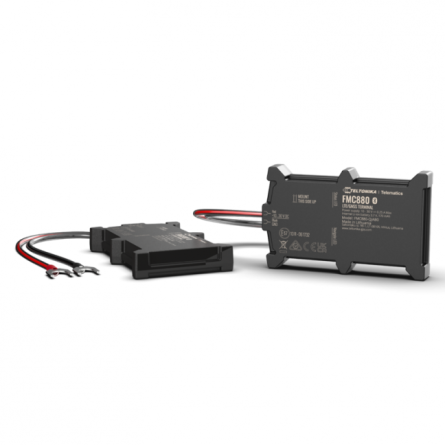

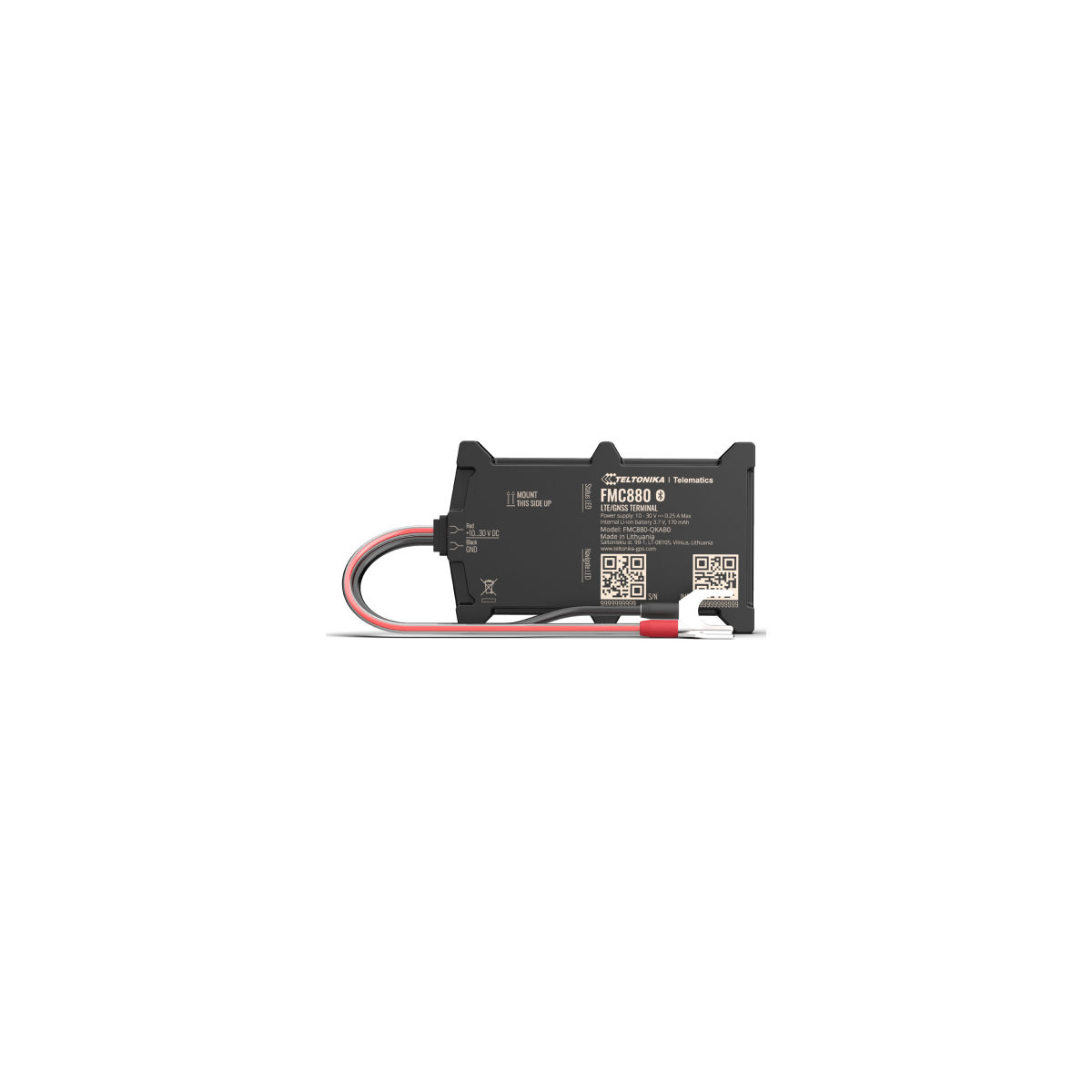

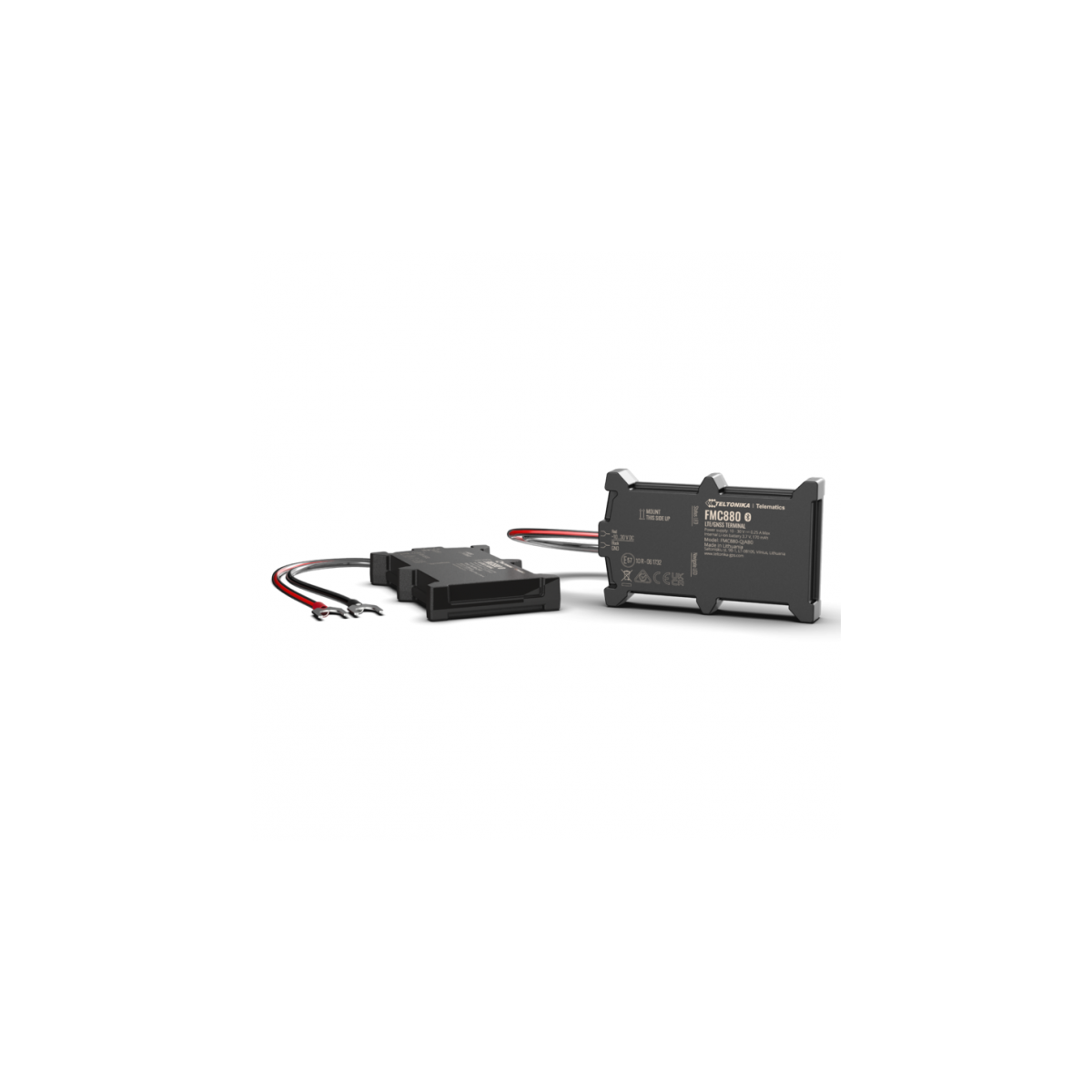

TELTONIKA FMC880 (4G)
€51.99
Tax excluded

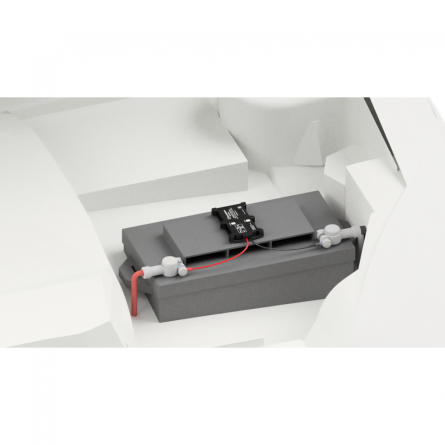

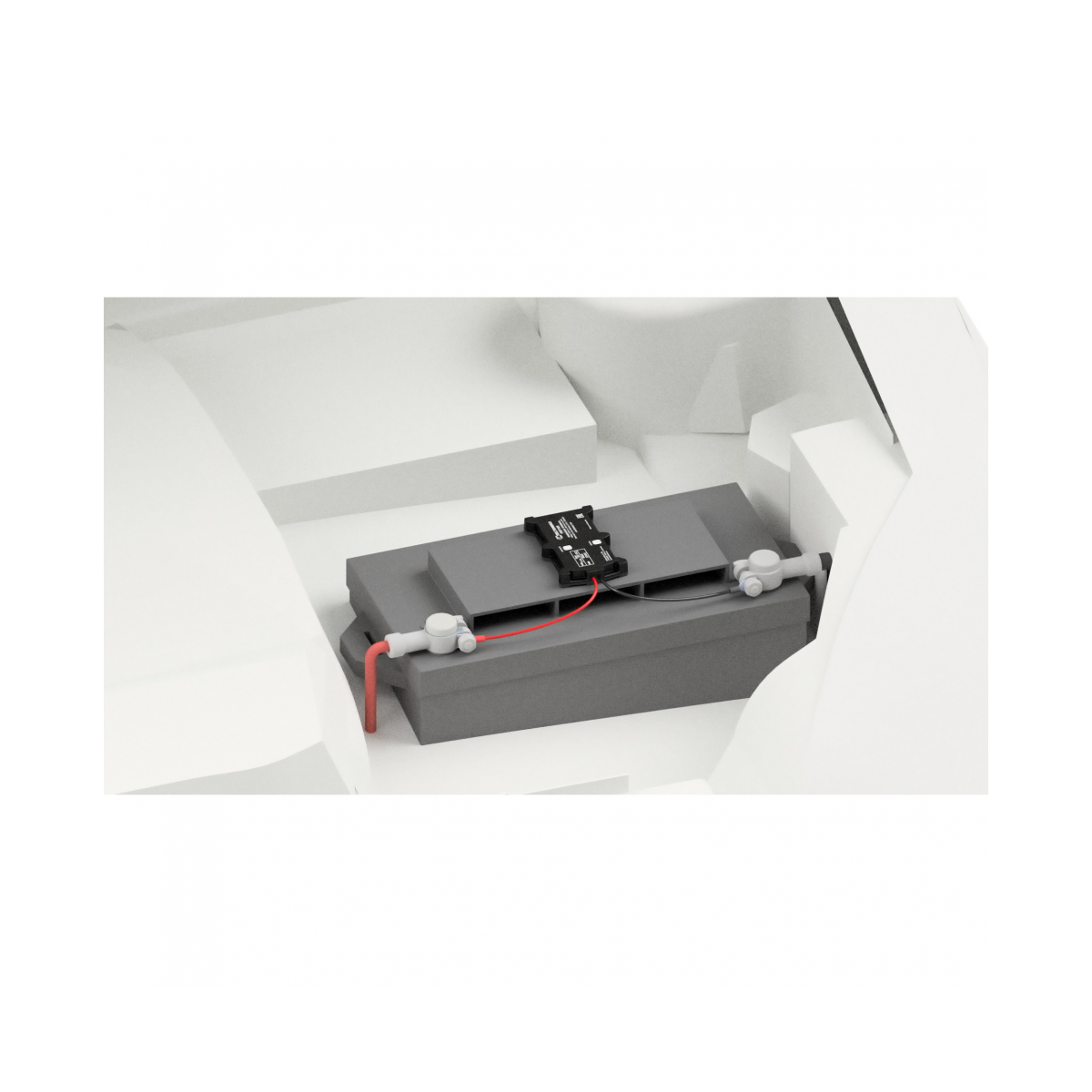

TELTONIKA FMC880 best price and cheap price with its 4G value for money. The TELTONIKA FMC880 can install the device in 5 minutes or less, directly on a car battery. IMPROVED GNSS TRACKING ACCURACY The standalone dual-band L1 and L5 GNSS receiver ensures better tracking quality and a fast first location. QUICK INSTALLATION THE RUGGED HOUSING IP65 Waterproof housing designed to withstand bad weather. ITS WIDE USES OF THE PRODUCT with Bluetooth BLE wireless connection to external devices, magnetic detection and movement. Standard contents: TELTONIKA FMC880 Power cables with special clamp connector (0.4 m) including low-power beacons and sensors, to monitor temperature, humidity,
15
TELTONIKA FMC880 best price and cheap price with its 4G value for money. The TELTONIKA FMC880 can install the device in 5 minutes or less, directly on a car battery. IMPROVED GNSS TRACKING ACCURACY The standalone dual-band L1 and L5 GNSS receiver ensures better tracking quality and a fast first location. QUICK INSTALLATION THE RUGGED HOUSING IP65 Waterproof housing designed to withstand bad weather. ITS WIDE USES OF THE PRODUCT with Bluetooth BLE wireless connection to external devices, magnetic detection and movement. Standard contents: TELTONIKA FMC880 Power cables with special clamp connector (0.4 m) including low-power beacons and sensors, to monitor temperature, humidity,
Features
| MODULE | |
|---|---|
| Name |
FMC880-QJAB0: Quectel EG915U-EU with AG3335 FMC880-QKAB0: Quectel EG915U-LA with AG3335 |
| Technology | LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS |
L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS* , QZSS* L5: GPS, GALILEO, BEIDOU |
| Receiver |
L1: 75 channel L5: 60 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 1 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 24 s |
| Cold start | < 35 s |
| CELLULAR | |
| 2G bands | GSM: B2/B3/B5/B8 |
| 4G bands |
FMC880-QJAB0: LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28 FMC880-QKAB0: LTE FDD (CAT 1): B2/B3/B4/B5/B7/B8/B28/B66 |
| Data transfer |
LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL) |
| Data support | SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, EGTS, MQTT) |
| Transmit power |
Class 5 for GSM850/900: 30±5dBM Class 3 for GSM1800/1900: 29±5dBM Class 3 for LTE-FDD: 26±5dBM Bluetooth: 5.54±2dBM Bluetooth LE: -4.26±2dBM |
| POWER | |
| Input voltage range | 10–30 V DC with overvoltage and reverse polarity protection |
| Internal Back-up battery | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) |
| Internal fuse | 13A, 125V |
| BLUE-TOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support |
| INTERFACE | |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 USB Micro B |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 92.5 x 57.6 x 14 mm (L x W x H) |
| Weight | 63 g |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C to +85 °C |
| Storage temperature | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP65 |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, Teltonika Configurator (USB, Bluetooth) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Ignition detection | Accelerometer, External Power Voltage |
| CERTIFICATION & APPROVALS | |
| Regulatory |
FMC880-QJAB0: CE/RED, E-Mark, RCM, REACH, RoHS FMC880-QKAB0: Anatel, REACH, RoHS |
