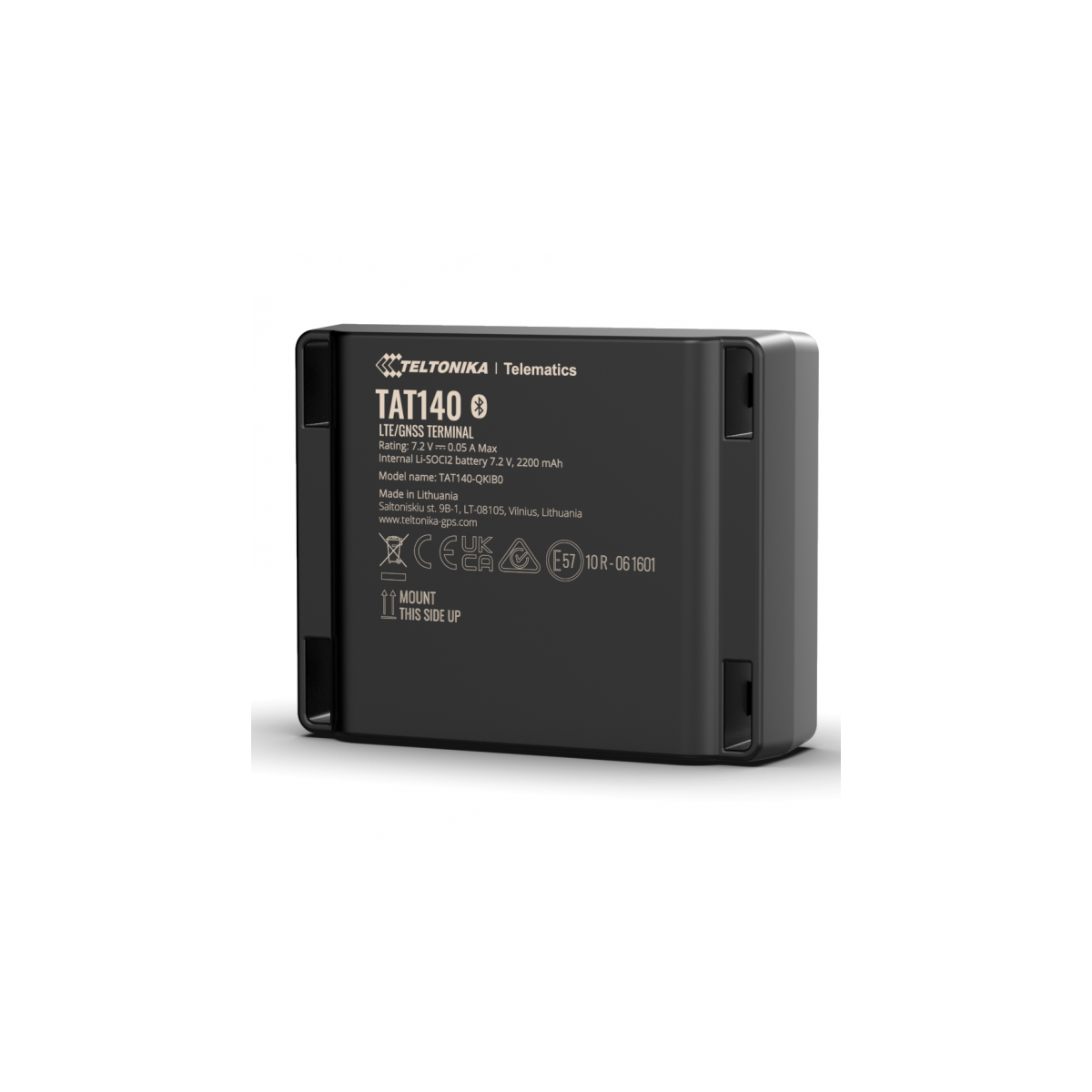

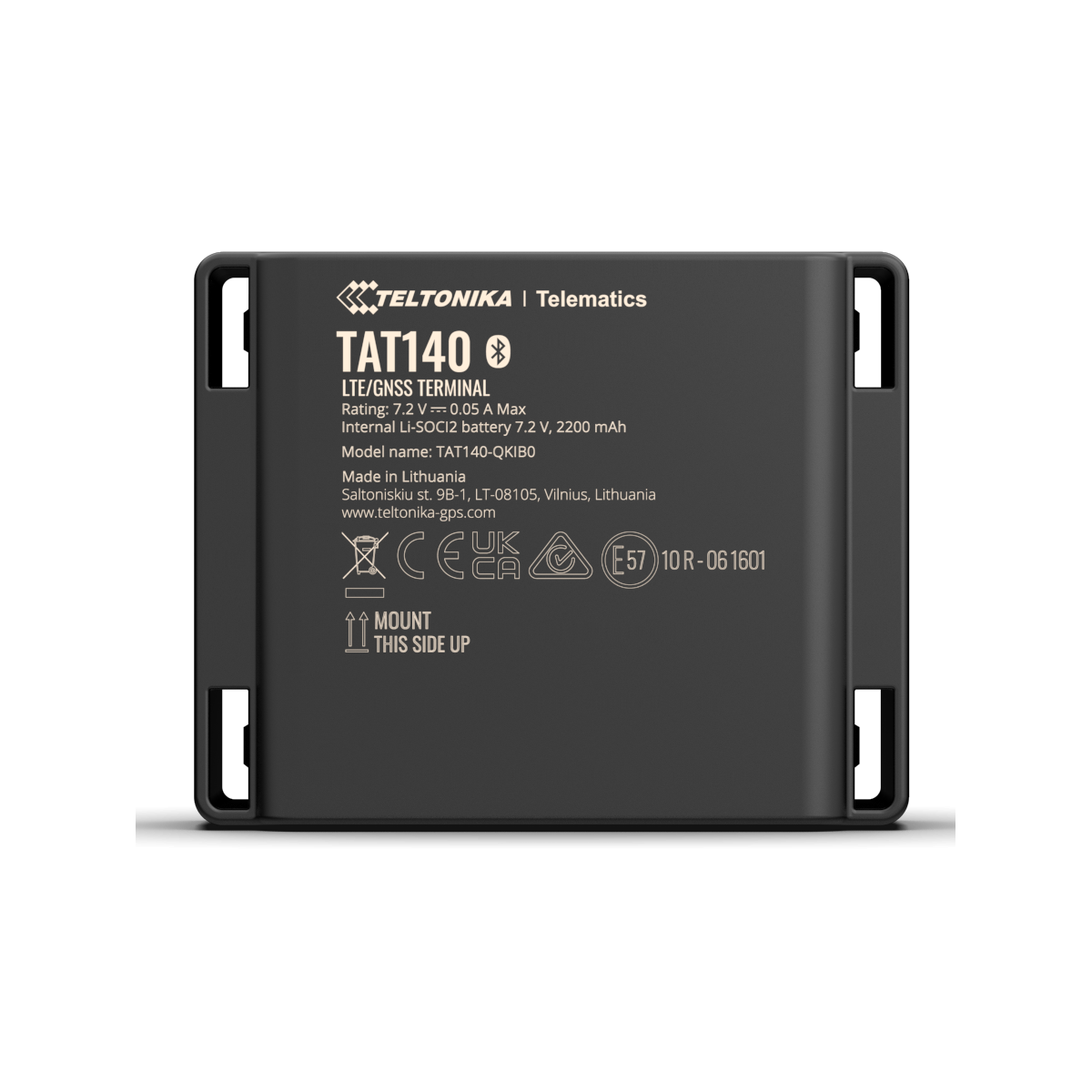

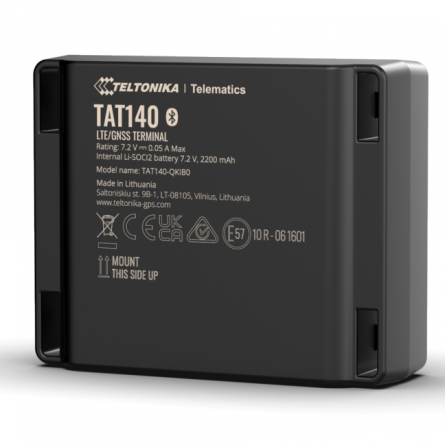

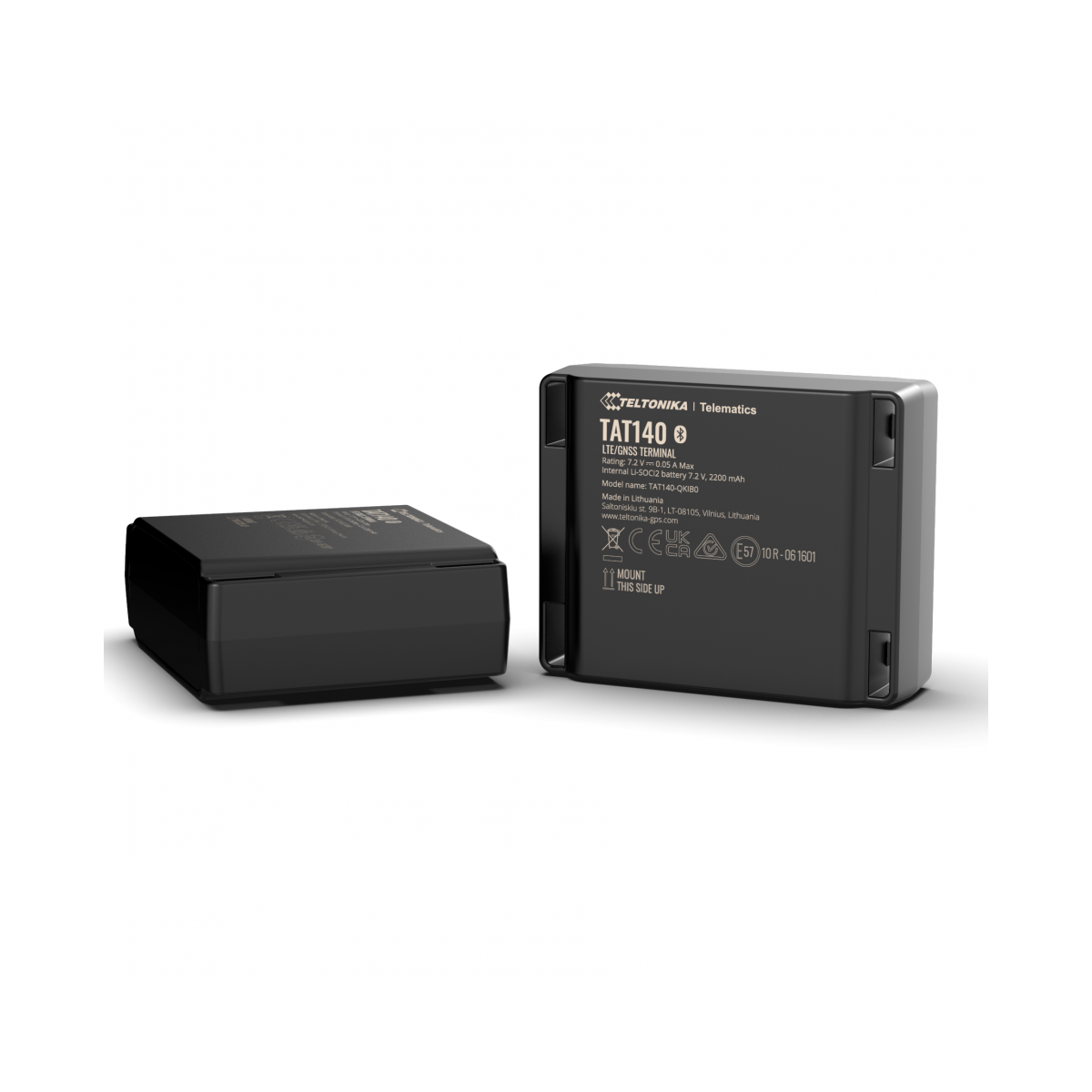

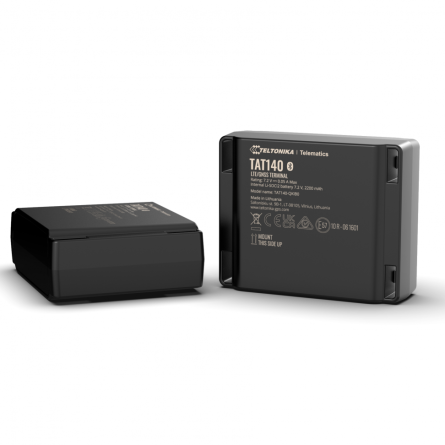

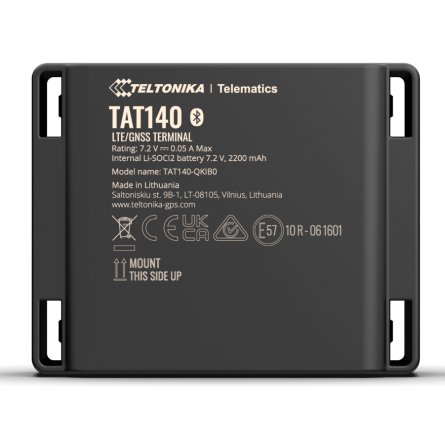

TELTONIKA TAT100 (4G)
€67.99
Tax excluded
TELTONIKA TAT140 price is a 4G LTE (CAT1), 3G/2G backup, GNSS and Bluetooth device for asset tracking and additional protection against theft of valuable goods. TAT140 can also be used in many applications, from tool tracking to container tracking. to offline modes and battery saving scenarios for various asset tracking. With the TELTONIKA TAT140 In case of theft, the recovery mode is activated to send records more frequently according to a predefined tracking scenario and allow for quick location of the asset. Sending records once a day thanks to 4G LTE Cat 1 connectivity,
5
TELTONIKA TAT140 price is a 4G LTE (CAT1), 3G/2G backup, GNSS and Bluetooth device for asset tracking and additional protection against theft of valuable goods. TAT140 can also be used in many applications, from tool tracking to container tracking. to offline modes and battery saving scenarios for various asset tracking. With the TELTONIKA TAT140 In case of theft, the recovery mode is activated to send records more frequently according to a predefined tracking scenario and allow for quick location of the asset. Sending records once a day thanks to 4G LTE Cat 1 connectivity,
Features
| Module |
Name TAT140-QJIBO: Quectel EG915U-EU with Teltonika TM2500; TAT140-QKIB0: Quectel EG915U-LA with Teltonika TM2500 Technology LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH |
| GNSS |
GNSS GPS, GLONASS, GALILEO, BEIDOU Receiver 33 channel Tracking sensitivity -165 dBM Position Accuracy < 2.5 m CEP |
| Cellular |
Technology LTE Cat 1, GSM 2G bands TAT140-QJIBO: EG915U-EU GSM: B2/B3/B5/B8; TAT140-QKIB0: EG915U-LA GSM: B2/B3/B5/B8 4G LTE Cat 1 bands TAT140-QJIBO: EG915U-EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28; TAT140-QKIB0: EG915U-LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 Data transfer LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL) Data transfer LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL) Data support SMS (text/data) |
| Power |
Internal battery Extremely low self-discharge Li-SOCl2 swappable battery, 7,2V 2200mAh |
| Bluetooth |
Specification 4.2 + LE Supported peripherals ELA sensors, EYE sensors, Beacons, Universal BLE sensor support |
| Physical specification |
Dimensions 78 x 63 x 28 mm (L x W x H) Weight 115g (when 2 cell batteries are used) |
| Interface |
GNSS antenna Internal High Gain Cellular antenna Internal GSM High Gain USB 2.0 Micro-USB LED indication 1 status LED light SIM Micro-SIM Memory 128MB internal flash memory |
| Operating environment |
Operating temperature (without battery) -20 °C to +60 °C Battery discharge temperature -60 °C to +85 °C Battery storage temperature Recommended max 30°C Ingress Protection Rating IP68 |
| Features |
Scenarios Accelerometer wake up, GNSS, Bluetooth sensor support, Recovery mode, Periodic tracking on stop / on move, Scheduler with time zones, Backup tracking, Static navigation, Lost BLE sensor Sensors Accelerometer Sleep modes Single custom sleep mode Configuration and firmware update FOTA Web, Teltonika Configurator (USB) SMS Configuration, Events, Debug GPRS commands Configuration, Debug Time Synchronization GNSS, NITZ, NTP |
| Certification & approvals |
Regulatory CE/RED, E-Mark, RCM, UKCA – pending. |
5
