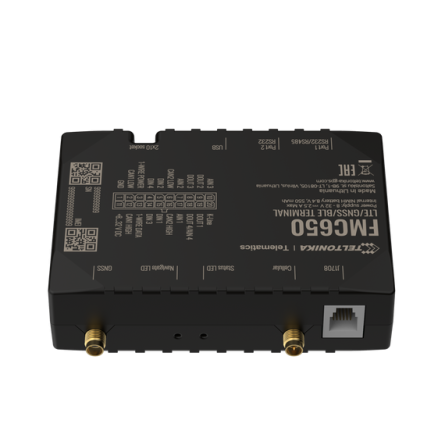

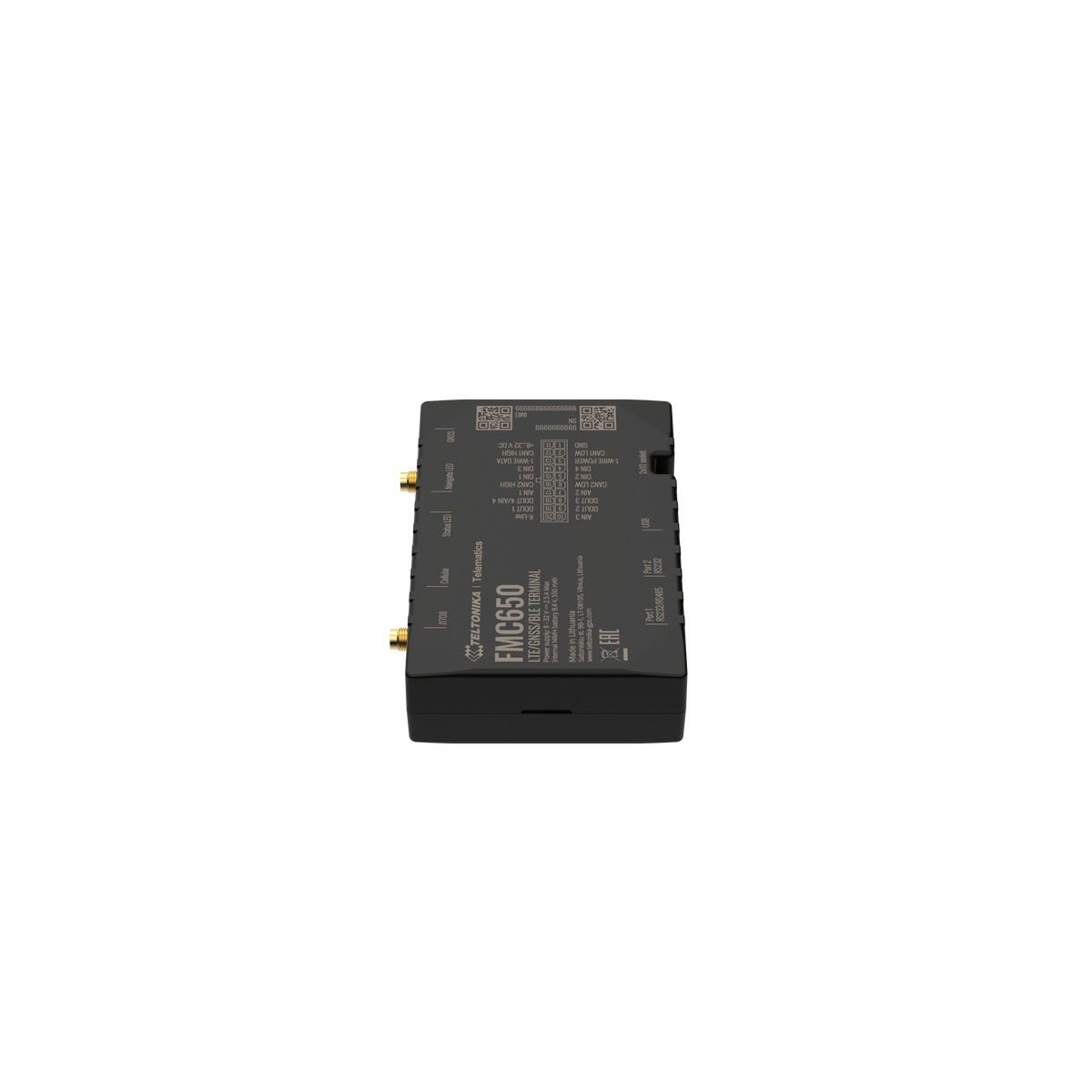

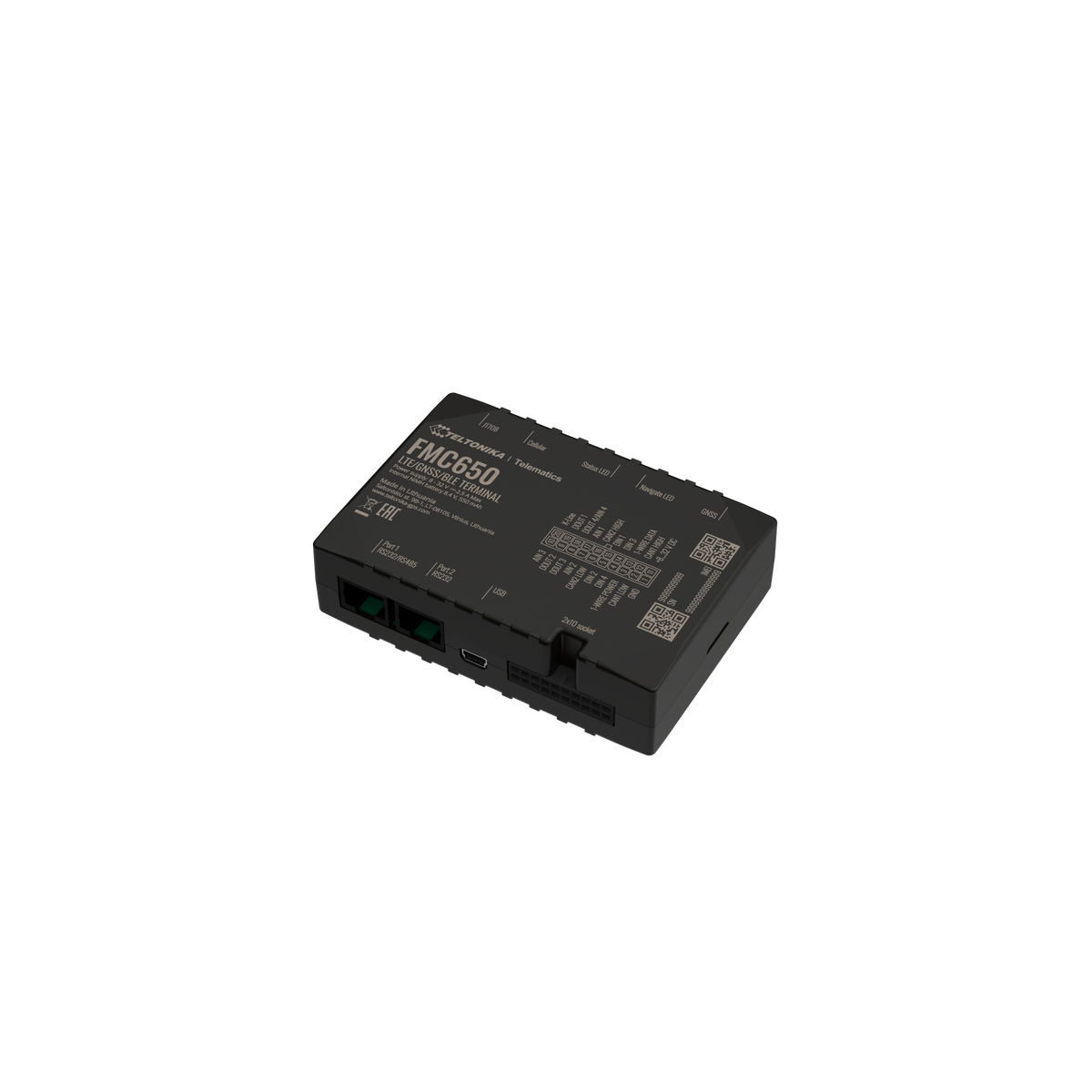

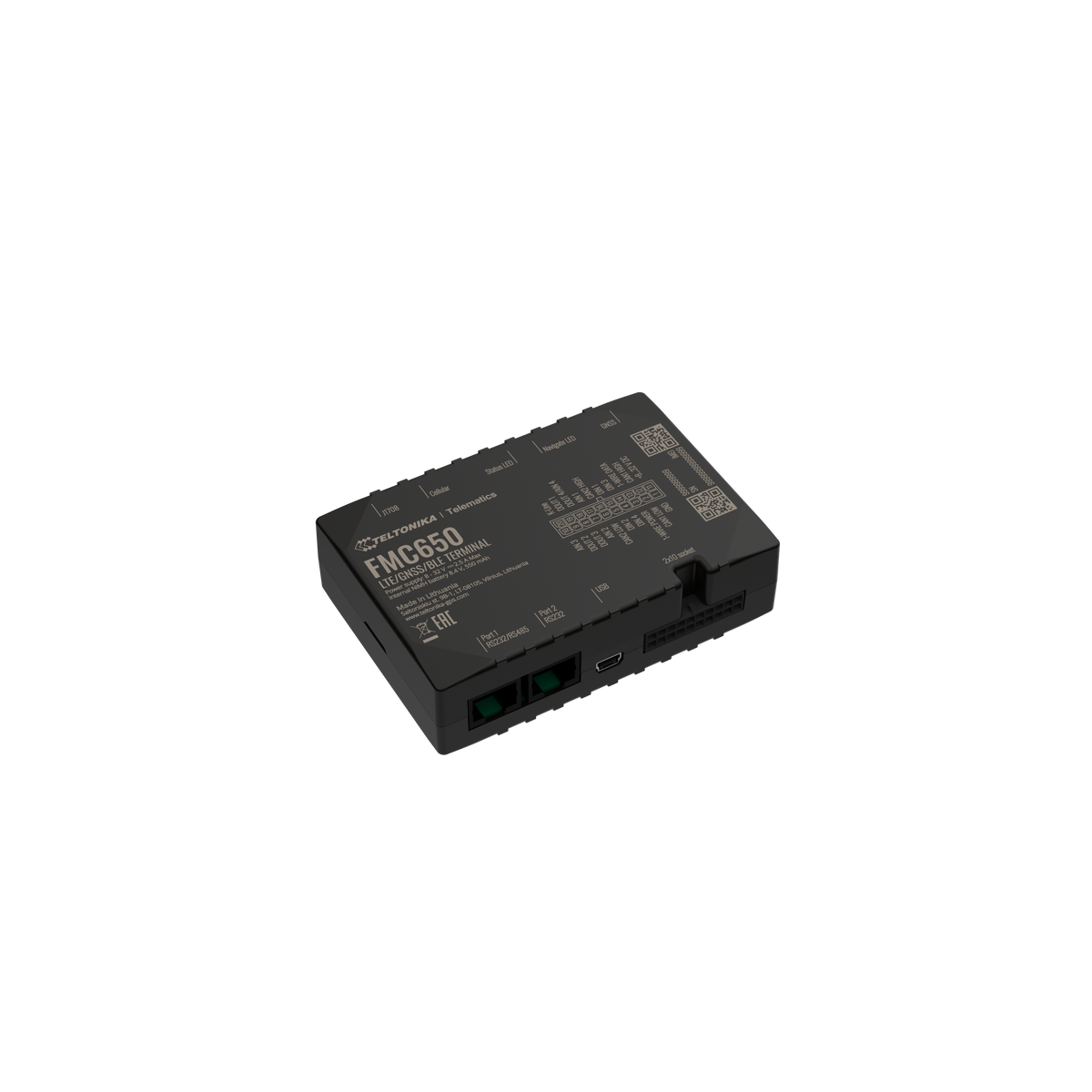

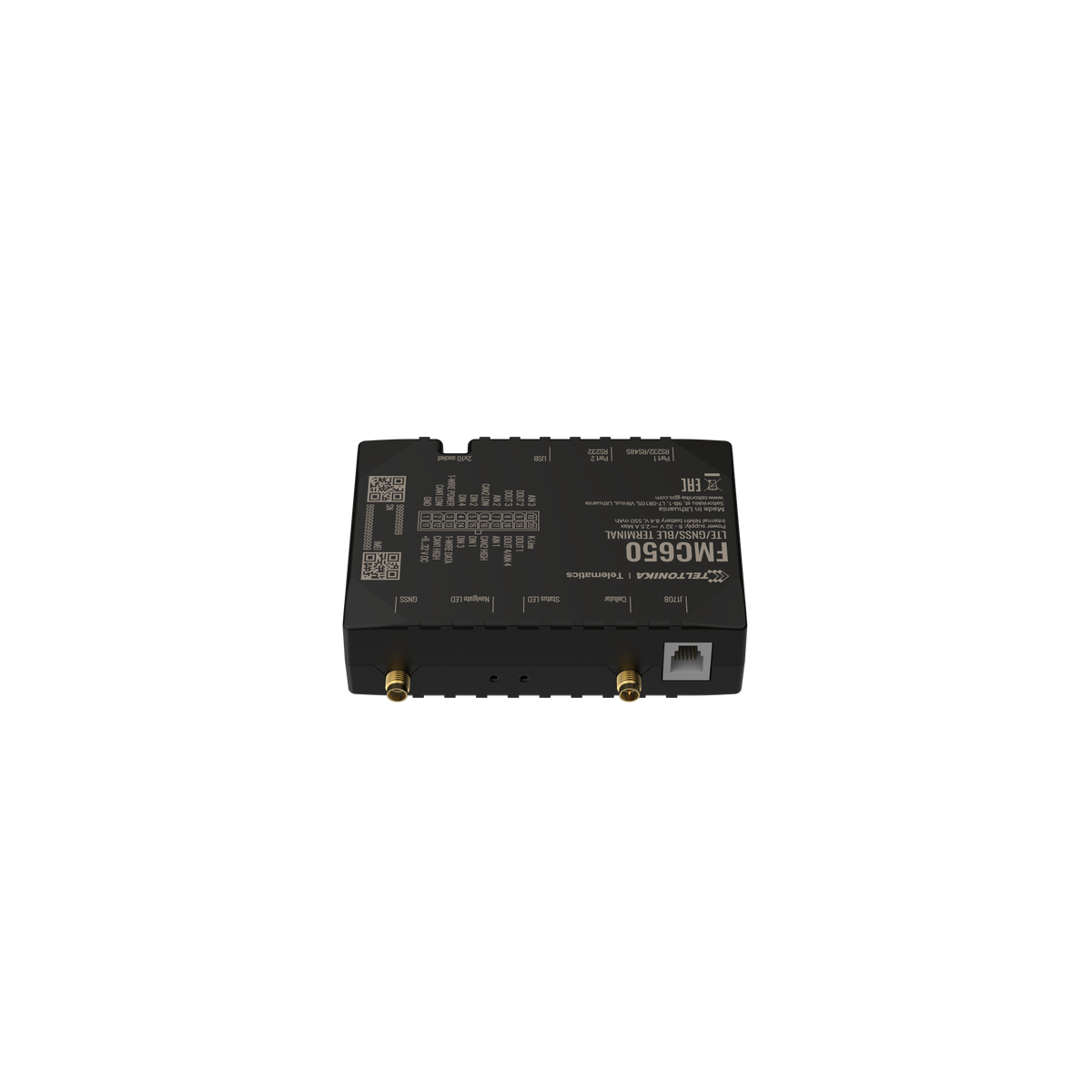

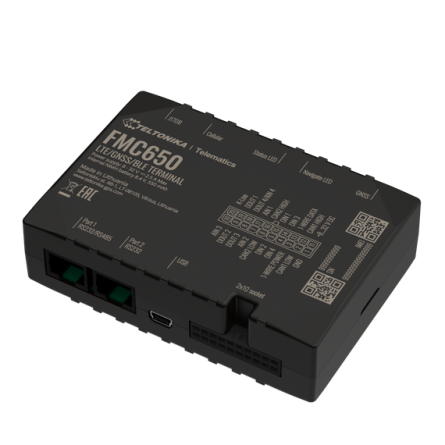

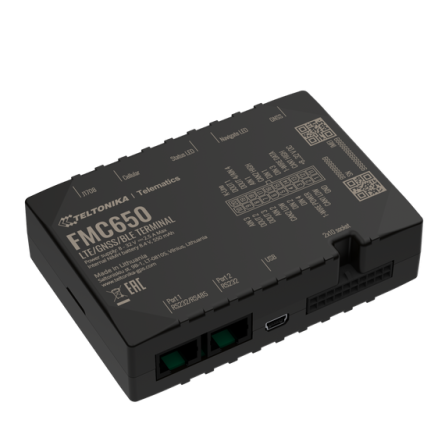

TELTONIKA FMC650 (4G)
€96.99
Tax excluded
TELTONIKA FMC650 PRICE cheap and at the best price is a device from the PROFESSIONAL series with 4G network coverage (LTE Cat 1) including 3G (UMTS), 2G (GSM) fallback compatibility. Device equipped with GNSS/LTE and Bluetooth modules. The TELTONIKA FMC650 will maximize the efficiency of your fleet with features such as FMS CAN data (J1939), CAN fuel data (J1708), live tachograph data (K-Line), remote tachograph file download, support for various third-party RS232 or RS485 devices and Dual-SIM. The terminal is suitable for applications such as international logistics, refrigerated transport, agriculture, construction and mining, security and emergency services and much more.
TELTONIKA FMC650 PRICE cheap and at the best price is a device from the PROFESSIONAL series with 4G network coverage (LTE Cat 1) including 3G (UMTS), 2G (GSM) fallback compatibility. Device equipped with GNSS/LTE and Bluetooth modules. The TELTONIKA FMC650 will maximize the efficiency of your fleet with features such as FMS CAN data (J1939), CAN fuel data (J1708), live tachograph data (K-Line), remote tachograph file download, support for various third-party RS232 or RS485 devices and Dual-SIM. The terminal is suitable for applications such as international logistics, refrigerated transport, agriculture, construction and mining, security and emergency services and much more.
Features
| MODULE | |
|---|---|
| Name | SLM320-E2, SLM320-LA |
| Technology | LTE (CaT1) / 2G (GSM / GPRS) / GNSS |
| GNSS | |
| Module name | Airoha AG3335MB |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS |
| Receiver | L1 and L5 dual-band GNSS receiver |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 2.5 CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 32 s |
| CELLULAR | |
| Technology | LTE Cat 1, GSM |
| 2G bands |
SLM320-E2: B2/B3/B5/B8 SLM320-LA: B2/B3/B5/B8 |
| 4G LTE Cat 1 bands |
SLM320-E2: LTE-FDD:B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 SLM320-LA: LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40 |
| Data transfer |
LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD Max 8Mbps (DL)/Max 2Mbps (UL) GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 8–32 V DC with overvoltage (compatible with pulse 5a and pulse 5b) and reverse polarity protection |
| Back-up battery | 550 mAh Ni-Mh, 8.4 V battery |
| Power consumption |
At 12V <7 mA (Deep Sleep) At 12V <13 mA (Online Deep Sleep) At 12V < 47 mA (GPS Sleep) At 12V < 68 mA (Normal) |
| BLUETOOTH | |
| Name | Blue NRG232 |
| Specification | 5.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Universal BLE sensors support |
| INTERFACE | |
| Digital Inputs | 4 |
| Digital Outputs | 4 |
| Analog Inputs | 4 |
| 1-Wire | 1 |
| RS232 | 2 |
| RS485 | 1 |
| CAN J1939 | 2 |
| J1708 | 1 |
| K-line | 1 |
| GNSS antenna | External High Gain (L1+L5) |
| Cellular antenna | External High Gain |
| USB | 2.0 Mini-USB – device can be powered by USB for easier device configuration |
| LED indication | 2 status LED lights |
| SIM | 2x SIM Card (Dual-SIM) or 1x eSIM |
| Memory | 16 MB internal flash memory and external Micro SD card up to 32GB |
| Switchable CAN terminators | Supported on CAN1 and CAN2 lines |
| PHYSICAL SPECIFICATION | |
| Dimensions | 104,1 x 76,8 x 31,5 mm (L x W x H) |
| Weight | 197 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Storage temperature (with battery) | -20 °C to +45 °C |
| Battery charge temperature | 0 °C to +45 °C |
| Battery storage temperature | --20 °C to +45°C |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), ODBII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| RS232 Modes | Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, TCP ASCII/Binary (Buffered), Rec to LCD, Atol Tachograph, UL202-2 Fuel Sensor, Iridium Edge/TSM232 Satellite backup, Carrier Freezer |
| RS485 Modes | Silent, Log Mode, NMEA, LLS, TCP ASCII/Binary, TCP ASCII/Binary (Buffered) |
| CERTIFICATION & APPROVALS | |
| Regulatory | CE/RED, E-Mark, RCM, Pulse 5a |
